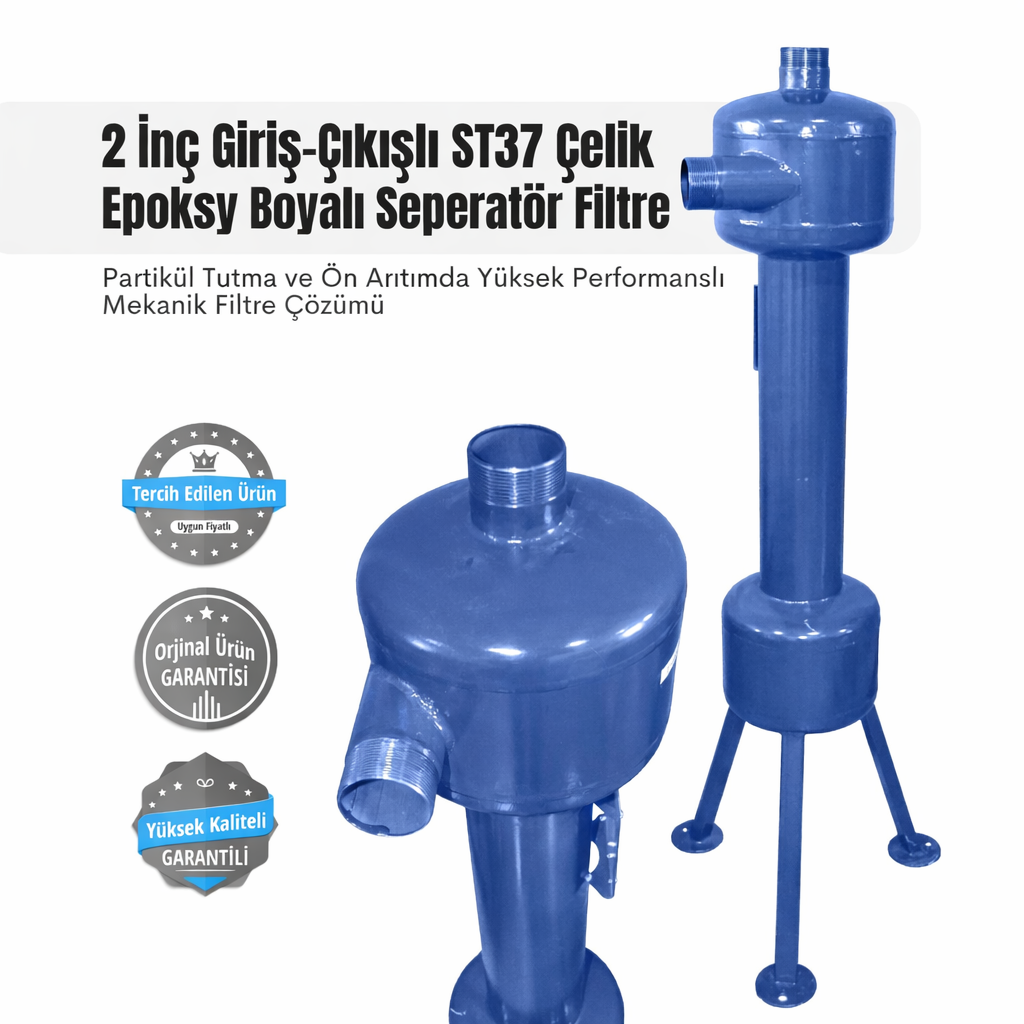

Separator filter systems are mechanical filtration systems used to separate sand, gravel, and similar heavy contaminants from water. The system works by collecting water from a side inlet into the filter housing and storing it through a centrifugal (vortex) effect. Contaminants heavier than the water are directed downwards by this rotational movement and removed from the system level through a blowdown line at the lower level.

Since no filter elements or consumables are used during the filtration process, operating costs are extremely low. At the same time, minimal wastewater is generated thanks to the controlled blowdown amount. These features make separator filters particularlypreferred in well water outflows and applications with high gross sanitary loads.

The discharge of contaminated water can be accomplished manually or automatically using a blowdown system,depending on process requirements. Its simple design reduces maintenance costs and ensures long-term stable performance.

Capacity and Design

Separator filter systems can be designed for different flow rates ranging from 1 m³/h to 110 m³/h. Depending on application conditions, the systems can be manufactured with custom dimensions and optional features.

Application Areas

• Well water filtration

• Rough discomfort and sand retention practices

• Pre-treatment systems

• Pump and equipment protection lines

Technical Specifications

• Manual or automatic bluff option

• ST 37 epoxy coated or stainless steel body.

• Time-controlled bluffing/backwashing option

• Filtration range: 70 – 110 microns
