A Modern and Effective Solution for Industrial Water Safety.

Ultraviolet (UV) systems are advanced disinfection technologies that enable the inactivation of bacteria, viruses, and other pathogenic microorganisms in industrial water treatment processes without the use of chemicals . Kutup Kimya Mühendislik guarantees the microbiological safety of water with UV systems designed to meet the needs of different sectors, while offering environmentally friendly and sustainable solutions.

What is an Ultraviolet (UV) System?

Ultraviolet (UV) systems work on the principle of exposing water to special lamps that emit UV-C wavelength (200–280 nm) radiation. These rays disrupt the DNA/RNA structure of microorganisms, preventing them from multiplying and rendering them harmless. UV disinfection does not require chlorine, ozone, or similar chemicals; the taste, odor, and chemical composition of the water remain unchanged.

Thanks to these features, UV systems are a reliable choice , especially in drinking water , process water , and water recovery applications .

How Ultraviolet Systems Work

UV systems operate through a compact and controlled process:

• Water Inlet: Raw water or pre-treated water is fed into the UV reactor. For high efficiency, turbidity and suspended solids should be low.

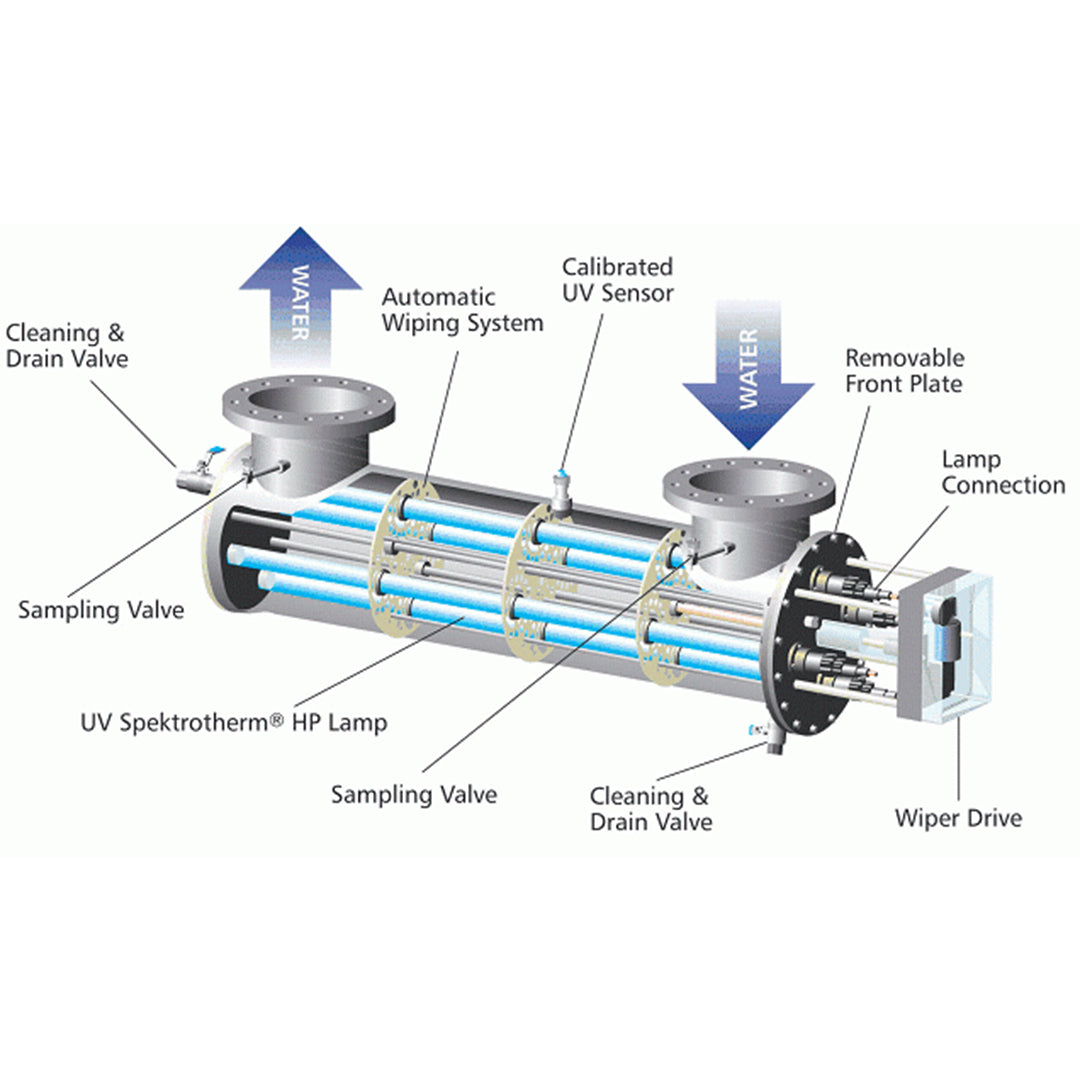

• UV Irradiation: As water flows around UV-C lamps in a stainless steel reactor, microorganisms are exposed to the radiation.

• Disinfection: The genetic structure of microorganisms is disrupted, and their ability to reproduce is eliminated.

• Effluent Water: Disinfected water is safely sent to process or usage points.

• Automatic Control: System performance is continuously monitored thanks to UV intensity sensors and control panels.

This process happens in seconds and provides continuous, reliable disinfection.

Advantages of Ultraviolet Systems

UV systems offer numerous technical and economic advantages for industrial facilities:

• High Disinfection Efficiency: Neutralizes bacteria and viruses at rates up to 99.9%.

• No Chemical Use: Methods like chlorination are not needed.

• Environmentally friendly: No chemical by-products or waste are generated.

• Low Operating Costs: Energy consumption is low, and the need for consumables is limited.

• Fast and Safe Process: Provides instant disinfection, requiring no contact time.

• Compact Design: Offers easy integration even in confined spaces.

Applications of Ultraviolet Systems

UV systems designed by Kutup Kimya Mühendislik have a very wide range of applications:

Drinking and Usable Water Treatment

Municipalities ensure microbiological safety in drinking water systems at residential sites and facilities.

Food and Beverage Industry

It helps ensure that the process water used in production meets hygiene standards.

Pharmaceutical and Cosmetics Industry

It provides reliable disinfection in production processes requiring high levels of hygiene.

Pool and Spa Systems

It increases user comfort by reducing chlorine usage.

Wastewater Treatment and Recycling

It provides microbiological treatment before discharge or reuse.

Agricultural and Irrigation Practices

It protects crop quality by reducing the risk of pathogens in irrigation water.

Marine and Ballast Water

It offers a disinfection solution that complies with international environmental standards.

Polar Chemical Engineering UV System Solutions

Kutup Chemical Engineering designs UV systems tailored to the water characteristics of each facility:

• Process and flow rate-specific engineering design.

• High-efficiency and long-lasting UV-C lamps.

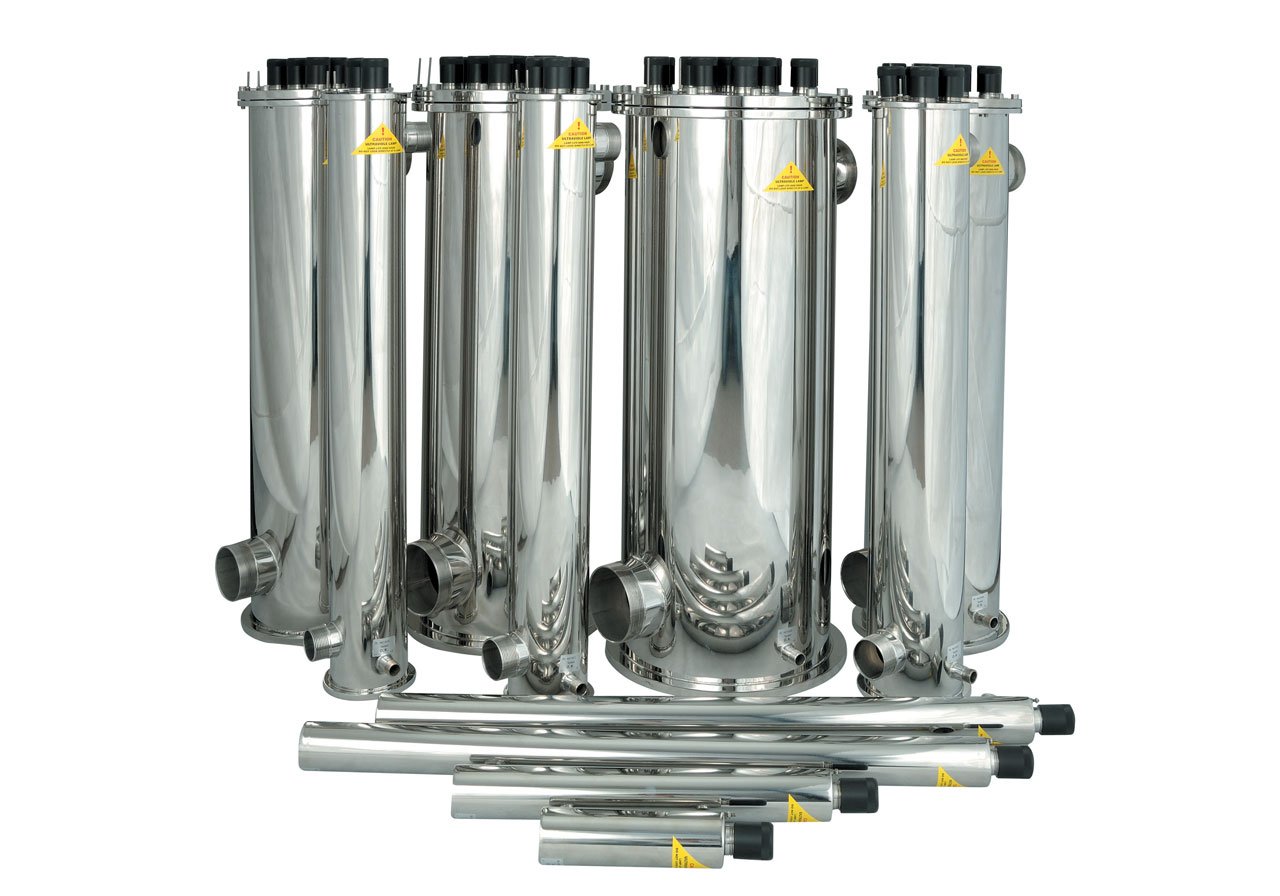

• Stainless steel UV reactors

• Automatic control and monitoring systems

• Turnkey installation and commissioning

• Periodic maintenance and technical service support.

Maintenance of Ultraviolet Systems

Regular maintenance is important to maintain the performance of UV systems:

• UV lamps must be replaced during specific operating hours.

• Cleaning quartz cases

• Inspection of sensors and control equipment.

• Monitoring disinfection performance.

Kutup Chemical Engineering provides periodic maintenance services to ensure the long-lasting and efficient operation of systems.

The Advantages of UV Disinfection Over Other Methods

• Chlorination: Can create chemical byproducts and taste/odor problems.

• Ozone: It has high investment and energy costs.

• UV Systems: A chemical-free, fast, safe, and low-cost alternative.

Result: Chemical-Free, Safe Water Disinfection

Ultraviolet (UV) systems offer a modern disinfection method in industrial water treatment, providing high hygiene , low operating costs , and an environmentally friendly approach . Kutup Kimya Mühendislik , with its engineering experience and technical expertise, designs the most suitable UV disinfection systems for your facility, guaranteeing safe water usage.

For detailed information about UV systems and to learn about customized solution options for your facility, please contact us.
