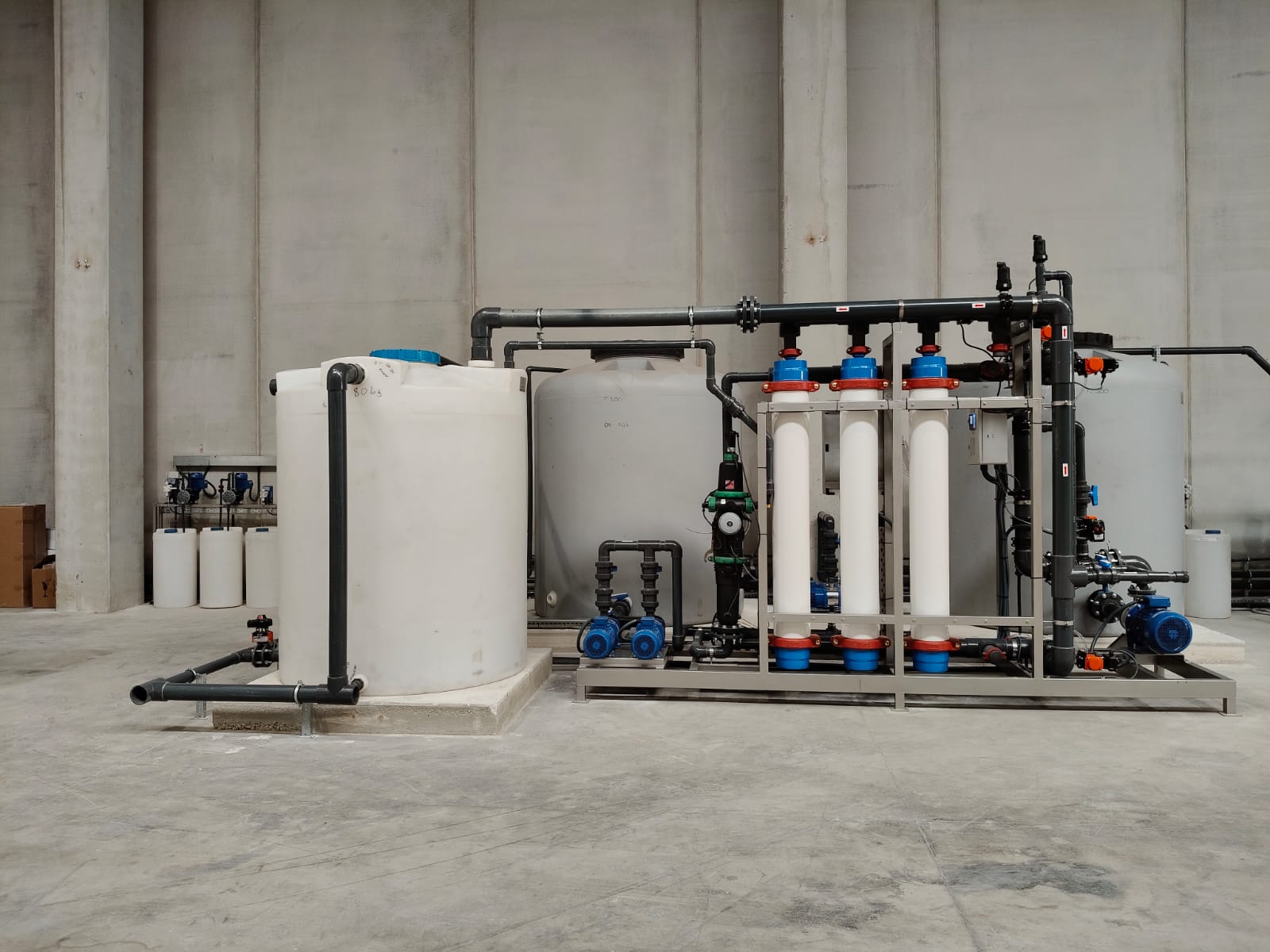

Ultrafiltration systems are advanced membrane technologies that provide high efficiency, process safety, and sustainability in industrial water treatment applications. Kutup Kimya Mühendislik aims to reduce water costs, increase process continuity, and minimize environmental impacts for businesses with ultrafiltration (UF) systems specifically designed to meet the water quality requirements of various sectors.

This content details the working principle of ultrafiltration systems, their technical advantages, their relationship with systems such as sand filters and RO systems, their areas of application, and Kutup Kimya Mühendislik's engineering approach.

What is an Ultrafiltration System?

Ultrafiltration (UF) is a water purification technology that separates suspended solids, colloids, bacteria, viruses, and high molecular weight organic compounds from water using semi-permeable membranes. UF membranes typically have a pore diameter of 0.01–0.1 microns and operate on the principle of a physical barrier.

Ultrafiltration systems;

• Further treatment after sand filtration,

• Effective pre-treatment before reverse osmosis (RO) systems,

• It is widely used as the main process in wastewater recovery applications.

Working Principle of Ultrafiltration Systems

In ultrafiltration systems, the purification process occurs by passing water across the membrane surface under a specific transmembrane pressure.

The process steps are as follows:

1. Raw Water Inlet: Water that has passed through pre-treatment (sand filter, cartridge filter, etc.) is fed into the UF unit.

2. Membrane Filtration: Only water molecules pass through the membrane pores; particles and microorganisms are trapped.

3. Permeate (Clean Water) Outlet: The filtered water is directed to process use or to the next treatment stage.

4. Backwashing / Chemical Cleaning: Contaminants accumulated on the membrane surface are removed through automatic backwashing and CIP processes.

Thanks to this design, UF systems offer solutions with low chemical consumption and ease of operation.

Advantages of Ultrafiltration Systems

Ultrafiltration systems designed by Kutup Kimya Mühendislik provide the following advantages to industrial facilities:

• High Filtration Efficiency: Up to 99.9% retention of bacteria, viruses, and suspended solids.

• Superior Performance Compared to Sand Filters: Consistent output water quality even under varying raw water conditions.

• RO Membrane Protection: Significantly reduces the risk of fouling in reverse osmosis systems.

• Low Energy Consumption: Lower operating pressure compared to RO systems.

• Compact Design: Enables high-capacity installation in confined spaces.

• Reduced Chemical Use: Minimizing the need for coagulants and flocculants.

• Environmentally Friendly Process: Low wastewater rate and sustainable operation.

Applications of Ultrafiltration Systems

Ultrafiltration systems have a wide range of industrial applications:

Food and Beverage Industry

Process water preparation, drinking water treatment, product quality preservation, and ensuring hygiene standards.

Pharmaceutical and Cosmetics Industry

Pure water and process water applications where microbiological safety is critical.

Textile Industry

Water preparation for dyeing and washing processes, wastewater recycling.

Chemical and Petrochemical Plants

Maintaining stable process water quality and protecting equipment.

Wastewater Recycling Systems

High-performance pre-filtration before further treatment and RO (Regional Electrotreatment) following MBR or biological treatment.

Drinking Water and Municipal Practices

Reliable membrane technology for bacteria and turbidity removal.

The Relationship Between Ultrafiltration, Sand Filters, and RO Systems

• Sand Filters: They trap large particles but have limitations against microorganisms.

• Ultrafiltration: Provides much finer filtration compared to sand filters and standardizes the quality of the output water.

• Reverse Osmosis (RO): Removes dissolved salts; UF systems are the most effective pre-treatment stage of RO.

Therefore, in Kutup Kimya Mühendislik projects, UF systems are generally designed as integrated solutions in the form of sand filter + ultrafiltration + RO .

Polar Chemical Engineering Ultrafiltration Solutions

Kutup Chemical Engineering offers the following services, tailored to the specific water characteristics of each facility:

• System design based on process and raw water analysis.

• Industrial grade hollow fiber and flat sheet UF membranes

• Automatic backwash and CIP systems

• Turnkey installation and commissioning

• Periodic maintenance, chemical cleaning, and technical service support.

Ultrafiltration Systems

Ultrafiltration systems are an indispensable technology in industrial water treatment projects due to their high effluent water quality, low operating costs, and sustainable structure. Kutup Kimya Mühendislik , with its engineering experience and process knowledge, offers ultrafiltration systems not just as equipment, but as a long-term process solution.

For customized ultrafiltration system design and detailed technical analysis for your facility, please contact us.
